MixingThreadDevice Class Reference

This device extends the SoftwareDevice with code for running mixing in a separate thread. More...

#include <MixingThreadDevice.h>

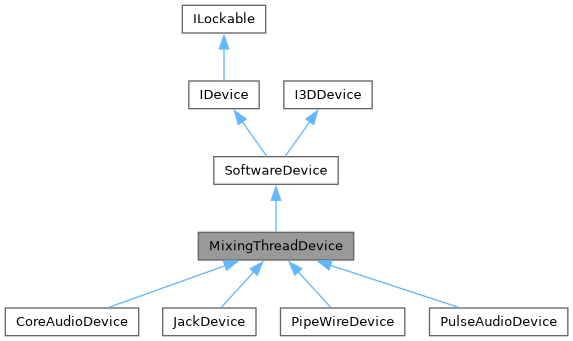

Inheritance diagram for MixingThreadDevice:

Protected Member Functions
void	startMixingThread (size_t buffersize)
	Starts the streaming thread.
void	notifyMixingThread ()
	Notify the mixing thread.
RingBuffer &	getRingBuffer ()
	Get ring buffer for reading.
bool	isMixingThreadRunning ()
	Returns whether the thread is running or not.
virtual void	playing (bool playing)
	This function tells the device, to start or pause playback.
virtual void	preMixingWork (bool playing)
	Called every iteration in the mixing thread before mixing.
	MixingThreadDevice ()
	Empty default constructor.
void	stopMixingThread ()
	Stops all playback and notifies the mixing thread to stop.
Protected Member Functions inherited from SoftwareDevice
void	create ()
	Initializes member variables.
void	destroy ()
	Uninitializes member variables.
void	mix (data_t *buffer, int length)
	Mixes the next samples into the buffer.
void	setSpecs (Specs specs)
	Sets the audio output specification of the device.
void	setSpecs (DeviceSpecs specs)
	Sets the audio output specification of the device.
	SoftwareDevice ()
	Empty default constructor.

Additional Inherited Members
Public Types inherited from IDevice
typedef void(*	syncFunction) (void *, int, float)
	The syncFunction is called when a synchronization event happens.
Public Member Functions inherited from SoftwareDevice
void	setQuality (ResampleQuality quality)
	Sets the resampling quality.
virtual DeviceSpecs	getSpecs () const
	Returns the specification of the device.
virtual std::shared_ptr< IHandle >	play (std::shared_ptr< IReader > reader, bool keep=false)
	Plays a sound source.
virtual std::shared_ptr< IHandle >	play (std::shared_ptr< ISound > sound, bool keep=false)
	Plays a sound source.
virtual void	stopAll ()
	Stops all playing sounds.
virtual void	lock ()
	Locks the device.
virtual void	unlock ()
	Unlocks the previously locked device.
virtual float	getVolume () const
	Retrieves the overall device volume.
virtual void	setVolume (float volume)
	Sets the overall device volume.
virtual Vector3	getListenerLocation () const
	Retrieves the listener location.
virtual void	setListenerLocation (const Vector3 &location)
	Sets the listener location.
virtual Vector3	getListenerVelocity () const
	Retrieves the listener velocity.
virtual void	setListenerVelocity (const Vector3 &velocity)
	Sets the listener velocity.
virtual Quaternion	getListenerOrientation () const
	Retrieves the listener orientation.
virtual void	setListenerOrientation (const Quaternion &orientation)
	Sets the listener orientation.
virtual float	getSpeedOfSound () const
	Retrieves the speed of sound.
virtual void	setSpeedOfSound (float speed)
	Sets the speed of sound.
virtual float	getDopplerFactor () const
	Retrieves the doppler factor.
virtual void	setDopplerFactor (float factor)
	Sets the doppler factor.
virtual DistanceModel	getDistanceModel () const
	Retrieves the distance model.
virtual void	setDistanceModel (DistanceModel model)
	Sets the distance model.
virtual void	seekSynchronizer (double time)
virtual double	getSynchronizerPosition ()
virtual void	playSynchronizer ()
virtual void	stopSynchronizer ()
virtual void	setSyncCallback (syncFunction function, void *data)
virtual int	isSynchronizerPlaying ()
Public Member Functions inherited from IDevice
virtual	~IDevice ()
	Destroys the device.
Static Public Member Functions inherited from SoftwareDevice
static void	setPanning (IHandle *handle, float pan)
	Sets the panning of a specific handle.
Protected Attributes inherited from SoftwareDevice
DeviceSpecs	m_specs
	The specification of the device.
std::shared_ptr< Mixer >	m_mixer
	The mixer.
ResampleQuality	m_quality
	Resampling quality.

Detailed Description

This device extends the SoftwareDevice with code for running mixing in a separate thread.

Constructor & Destructor Documentation

MixingThreadDevice()

MixingThreadDevice::MixingThreadDevice ( )

protected

Empty default constructor.

To setup the device call the function create() and to uninitialize call destroy().

Member Function Documentation

playing()

virtual void MixingThreadDevice::playing ( bool playing )

protectedvirtual

This function tells the device, to start or pause playback.

Parameters

playing

True if device should playback.

Note

This method is only called when the device is locked.

Implements SoftwareDevice.

Reimplemented in JackDevice, PipeWireDevice, and PulseAudioDevice.

preMixingWork()

virtual void MixingThreadDevice::preMixingWork ( bool playing )

protectedvirtual

Called every iteration in the mixing thread before mixing.

Reimplemented in PipeWireDevice.

startMixingThread()

void MixingThreadDevice::startMixingThread ( size_t buffersize )

protected

Starts the streaming thread.

Parameters

buffersize

Size of the ring buffer in bytes.

stopMixingThread()

void MixingThreadDevice::stopMixingThread ( )

protected

Stops all playback and notifies the mixing thread to stop.

Warning

The device has to be unlocked to not run into a deadlock.

---

The documentation for this class was generated from the following file:

• devices/MixingThreadDevice.h
